Revolutionising Space Communication: The Rise of Laser Technology in Satellite Networks
Laser Communication and Satellites | Ashin Alex
As space missions become increasingly sophisticated, the demand for high-speed, high-volume data transmission is growing. Traditional radio frequency (RF) communication systems are reaching their limits in terms of bandwidth and data rates. This has led to the exploration of laser communication (laser comm), a technology that uses coherent light to transmit data. Laser comm promises faster data rates, higher bandwidth, and greater energy efficiency compared to RF systems, making it a crucial technology for the future of space and satellite communication.
The limitations of RF communication are becoming increasingly apparent as modern missions require the transmission of vast amounts of data. High-resolution imaging, real-time video streaming, and large-scale data collection generate data volumes that RF systems struggle to handle in real-time [1]. Laser comm addresses these limitations by offering significantly higher bandwidths, which allow for the transmission of uncompressed data at faster rates. Laser comm can transmit data at rates far exceeding those possible with RF systems [1]. For example, inter-satellite laser links have achieved data rates exceeding 5 gigabits per second (Gbps) across distances greater than 5,000 km [2]. The highly focused nature of laser beams means that less power is required to transmit data over long distances, resulting in lower energy consumption. This is particularly beneficial for space missions where power resources are limited. Laser comm is inherently more secure than RF communication due to the narrow beam divergence of laser signals. This makes it more difficult for unauthorised parties to intercept the signal, providing a higher level of security for sensitive data transmissions [2].

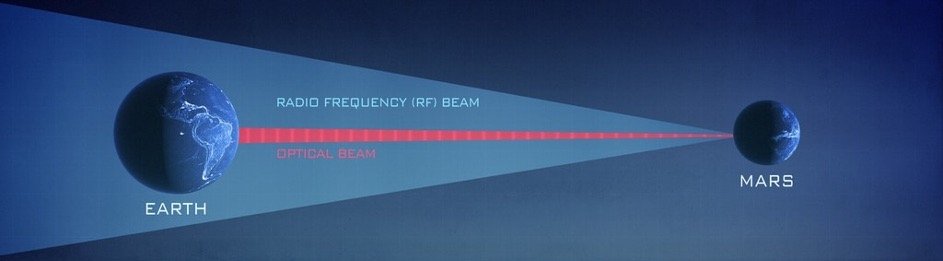

Figure 1: Laser vs RF beam distribution [3].
Unlike RF communication, which can suffer from interference and signal degradation, laser comm is less susceptible to these issues [4]. This ensures more reliable communication links, even in challenging environments. Laser communication operates in the optical spectrum, which is not subject to the same licensing requirements as RF communication [4]. This allows for more flexible and scalable deployment of communication systems.
Despite its advantages, laser comm faces several challenges that must be addressed for widespread adoption. Laser beams are highly directional, requiring precise pointing and alignment of the transmitter and receiver. Any deviation, even by a fraction of a degree, can result in the loss of the signal. NASA’s Space Communications and Navigation (SCaN) program is developing beacon-aided acquisition techniques to enhance the accuracy of laser beam pointing [6]. Laser beams spread out as they travel over long distances, reducing the density of the light and making data retrieval more difficult. To address this, specialised receivers, such as photon counting detectors, are being developed to capture single photons and ensure accurate data reception [7]. Earth's atmosphere can interfere with laser communication, especially clouds and mist [4]. To mitigate this, multiple ground stations equipped with telescopes are being developed to ensure continuous communication even in adverse weather conditions. These stations can redirect laser signals to alternative locations if the primary station is obstructed.
Figure 3: ESA's optical ground station [8].
Figure 4: Constellation of satellites with representative beams. Note: AI Image generated using Microsoft Copilot from the prompt 'Infrared Laser Comm from satellite to earth'.

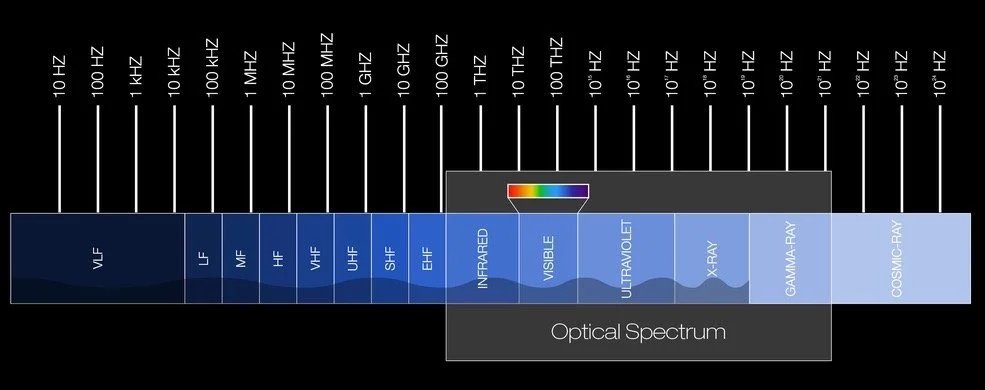

Figure 2: Optical spectrum [5].
Glossary
Beam Divergence: Angular measure of the increase in beam diameter or radius with distance from the optical or antenna aperture from which the beam emerges.
Downlink: Telecommunications link for signals coming to Earth from a satellite, spacecraft, or aircraft.
Photon Counting: Technique in which individual photons are counted using a single-photon detector (SPD), which emits a signal pulse for each detected photon.
Several major aerospace organisations and startups are at the forefront of laser communication development. NASA's Laser Communications Relay Demonstration (LCRD) initiative aims to show the capabilities of laser comm in space, focusing on high-data-rate transmission between satellites and ground stations [3]. The European Space Agency’s European Data Relay System (EDRS) uses laser communication to relay data between low Earth orbit satellites and ground stations. This system enhances the speed and volume of data transmitted from space to Earth, supporting a wide range of applications, including Earth observation and climate monitoring [8].
The University of Auckland is spearheading the development of Free-Space Optical Communication (FSOC) in New Zealand, led by Associate Professor Nicholas Rattenbury. His work focuses on advancing optical ground segment technologies, with significant research being conducted at the Taiaho Observatory. This facility, dedicated to cutting-edge space communication research, plays a crucial role in testing and refining FSOC systems. The observatory's location and infrastructure provide an ideal environment for experimenting with high-speed, high-bandwidth optical links, positioning New Zealand at the forefront of this emerging technology [9].
NASA’s Pathfinder Technology Demonstrator 3 (PTD-3) mission will feature the TeraByte InfraRed Delivery (TBIRD) system. TBIRD is designed to demonstrate the high-data-rate capabilities of laser communications from a CubeSat in low-Earth orbit. With the ability to downlink data at 200 Gbps, TBIRD will achieve the highest optical rate ever reached by NASA. During a single seven-minute pass of the CubeSat over ground station, TBIRD can send back terabytes of data, showcasing the power of laser communications. This is similar to upgrading from dial-up to high-speed internet, allowing for faster and more comprehensive data transmission [10].
The future of laser communication is promising, with ongoing research and development aimed at overcoming current challenges and expanding the technology’s capabilities. As laser comm systems become more reliable and cost-effective, they are expected to play a key role in future space missions, including those involving deep space exploration and satellite constellations [5].
As laser comm technology matures, it is expected to find use beyond the government and military. Commercial satellite operators, telecommunications companies, and even internet service providers may adopt laser comm to meet the growing demand for high-speed data transmission. NASA and other space agencies are exploring the use of laser comm for deep space missions, where the vast distances involved make traditional RF communication impractical. Laser comm’s ability to transmit data over long distances with minimal power consumption makes it an ideal choice for these missions [10].
Laser communication represents a significant advancement in the field of space and satellite communication. Its ability to provide higher data rates, greater energy efficiency, and enhanced security makes it a strong alternative to traditional RF communication systems. While challenges remain, ongoing research and development efforts are paving the way for the widespread adoption of laser comm in future space missions. As the technology continues to evolve, it holds the potential to revolutionise how data is transmitted across space, enabling faster, more reliable communication networks that support the next generation of space exploration and satellite operations.
[1] W. Raza et al., “Towards a Hybrid RF/Optical Lunar Communication System (LunarComm),” arXiv (Cornell University), Jan. 2022, doi: https://doi.org/10.48550/arxiv.2203.15899.
[2] “Laser Communication Terminal - High-Speed Data Transfer | HENSOLDT,” Hensoldt.net, 2024. Available: https://www.hensoldt.net/products/optronics/laser-communication-terminal-high-speed-data-transfer/ (accessed: Aug. 18, 2024)
[3] “9.0 Communications - NASA,” NASA. Available: https://www.nasa.gov/smallsat-institute/sst-soa/soa-communications/ (accessed: Aug. 18, 2024)
[4] H. Kaushal and G. Kaddoum, “Optical Communication in Space: Challenges and Mitigation Techniques,” IEEE Communications Surveys & Tutorials, vol. 19, no. 1, pp. 57– 96, 2017, doi: https://doi.org/10.1109/comst.2016.2603518.
[5] “Optical Communications - NASA,” NASA, Sep. 20, 2023. Available: https://www.nasa.gov/technology/space-comms/optical-communications-overview/#section-3 (accessed Aug. 18, 2024)
[6] NASA, “Space Communications and Navigation (SCaN) Program - NASA,” SCaN Program. https://www.nasa.gov/directorates/space-operations/space-communications-and-navigation-scan-program/ (accessed Sep. 02, 2024).
[7] S. Huang et al., “Single-Photon Counting Receivers for Optical Wireless Communications in Future 6G Networks,” Cornell University, no. v2, Oct. 2023, doi: https://doi.org/10.48550/arxiv.2305.09821.
[8] “ESA’s Optical Ground Station,” Esa.int, 2019. Available: https://www.esa.int/ESA_Multimedia/Images/2019/05/ESA_s_Optical_Ground_Station (accessed Aug. 27, 2024)
[9] “Taiaho Observatory,” Taiaho.nz, 2024. http://taiaho.nz/about/ (accessed Aug. 27, 2024).
[10] “CubeSat Set to Demonstrate NASA’s Fastest Laser Link from Space - NASA,” NASA, May 24, 2022. Available: https://www.nasa.gov/directorates/somd/cubesat-set-to-demonstrate-nasas-fastest-laser-link-from-space/ (accessed: Sept. 1, 2024)
Ashin is an explorer, driven by curiosity and a passion for discovering inventions that could benefit humanity. He is a second-year Bachelor of Advanced Science student specialising in Space Systems. Currently, Ashin is a Research Assistant in Professor Nicholas Rattenbury's Free-Space Optical Communication (FSOC) research team, where he focuses on single photon counting technology.
